Setra inc. is the leading technology company developing superior solutions for monitoring in the critical Laboratory, Life Science and Healthcare environment.
We pride ourselves in delivering systems that provide best in class controls united with user interface devices that improve space management and access to critical information. The contemporary critical environment found in hospitals, laboratories, vivarium and biological containment facilities require accurate, efficient and verifiable monitoring and control. Through technology and innovation Setra uniquely delivers a system that ensures safety while optimizing energy efficiency and a great work environment.
Setra has designed and developed the most comprehensive product lines of pressure sensing transducers in the world. Setra has been innovating Test & Measurement sensor designs for over 50 years and has become a leader in the pressure transducer market.
setra-logo

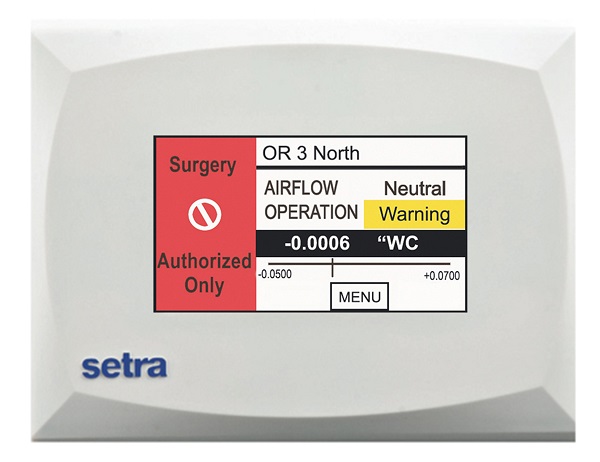

Setra SRCM

The SRCM is the highest performance BACnet capable product for measuring low differential pressure in critical applications. The SRCM can monitor and alarm two rooms through one device, as well as display 3 additional parameters such as temperature, humidity & CO2. The SRCM has cloning functionality via a USB port, which ensures time and money savings on installation in applications where multiple monitors are required. The SRCM also has a 4.3” color LCD touch screen for easy menu navigation as well as a flush mount design. The SRCM provides the ability for custom naming for all rooms and conditions while including two-level password protection.

ome of the features of SRCM:

  • 4.3” Touch Screen display
  • On-board Sensor – Industry Best Accuracy
  • Monitor up to 4 Parameters: Pressure, Temp, Humidity & User-Defined, such as Air Changes Per Hour (ACH)
  • Wipe-down Capable IP-54 Flush Mount Design
  • Configurable Audible & Visual Alarms to Avoid Nuisance
  • Reduce Installation Time with Unit Clone Feature
  • Onboard BACnet MS/TP Communications
Setra_Model_SRCM_Product_Image

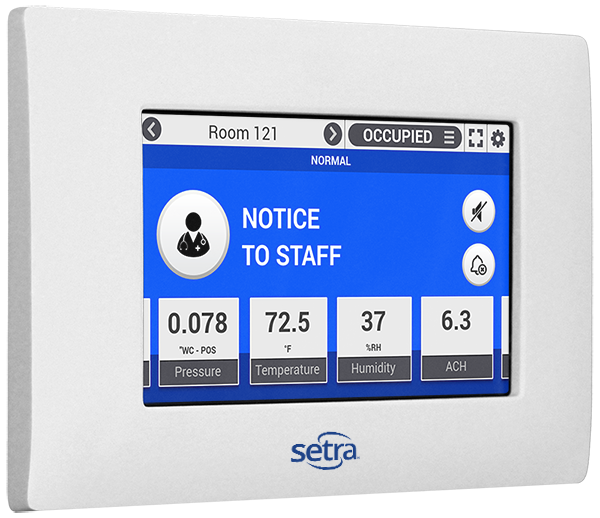

Setra Flex

The Setra FLEX™ provides a flexible room environmental control and monitoring solution in a simple-to-use package. An attractive flush-mount faceplate is complemented by an intuitive graphical display to meet any architectural requirement. The unit supports 3 rooms, monitoring up to 6 parameters for each room. Integration with building automation systems is made easy through either BACnet/IP or BACnet MS/TP network protocols

Some of the features of FLEX:

  • Supports 3 rooms, 6 parameters each
  • 7” Projected capacitive touch screen
  • BACnet/IP & BACnet MS/TP
  • Flush mount to wall
  • Full touch response with medical gloves
  • No programing required
  • 4 Inputs & 2 outputs on-board
  • On-board or external pressure transducer
  • High accuracy 0.25% sensor standard
  • Monitor and control pressure, temperature, humidity, air change rate, and 2 user-defined parameters
  • 4 Customizable room profiles
  • 2 Levels of password security
  • User-defined on-screen text and icons
  • Cloning features reduces time required for multi-unit installation
setra-flex-environmental-room-monitor

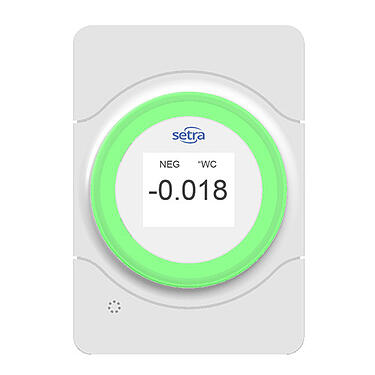

Setra Lite

Setra Lite provides a simple, cost-effective, and accurate way to measure and display room differential pressure in areas today that require manual verification. For local staff managing an area, Setra Lite has a light ring that is green or red, showing a clear indication of room conditions.Some of the features of Setra Lite:

  • Visual alarm via red/green light ring
  • Analog output provides pressure reading to BMS system
  • Full configuration is easy, using just 3 buttons

Particles Counters

Particle counters are used to measure and count the number of various sized particles in the air. Particle counters can be used to monitor potential contamination in cleanroom environments, to monitor indoor air quality (IAQ), and to ensure certification of ISO standards. Setra Systems offers a family of particle counters ranging from handheld portable particle counters to benchtop air quality units.

  • SPC5000 & SPC7000 Series Particle Counters

The Setra Systems SPC5000 and SPC7000 Remote Particle Counters are the most feature advanced remote particle counters available. These instruments can measure between 0.3 μm to 25 μm sized particles with a flow rate of 0.1 CFM (2.83 LPM) and is the most versatile line of remote particle counters available.

  • Measures 6 channels of simultaneous data
  • Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
  • Complies with ISO 21501-4 and JIS B9921 standards
  • Displays and externally prints reports for ISO 14644-1, EU GMP Annex 1and FS 209E
  • Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232, or (optional) BACnet IP and BACnet MS/TP

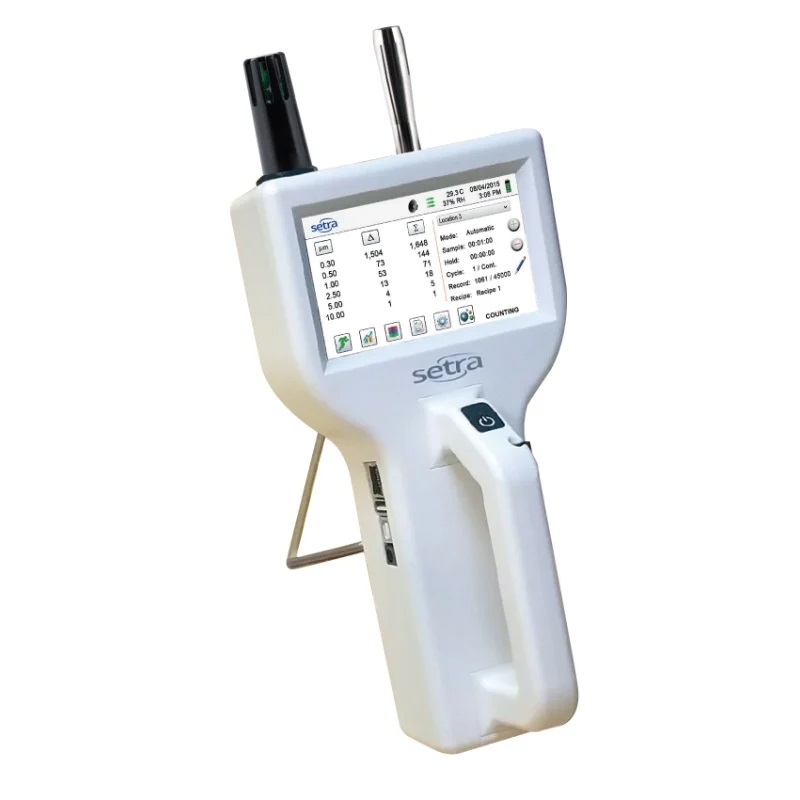

  • SPC8000 Hand-Held Particle Counters

The Setra Systems SPC8000 Handheld Airborne Particle Counter is the most feature-advanced handheld particle counter available. This instrument can measure between 0.3 μm to 25 μm sized particles with a flow rate of 0.1 CFM (2.83 LPM) and is the most versatile line of remote particle counters available
Some features:

  • Measures 0.3 μm to 25.0 μm, with 0.1 CFM (2.83 LPM) flow rate
  • Long life laser diode technology
  • Complies with ISO 21501-4 and JIS B9921 standards
  • Displays and externally prints reports for ISO 14644-1, EU GMP Annex 1and FS 209E
  • Measures up to 6 channels of simultaneous data
  • Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
